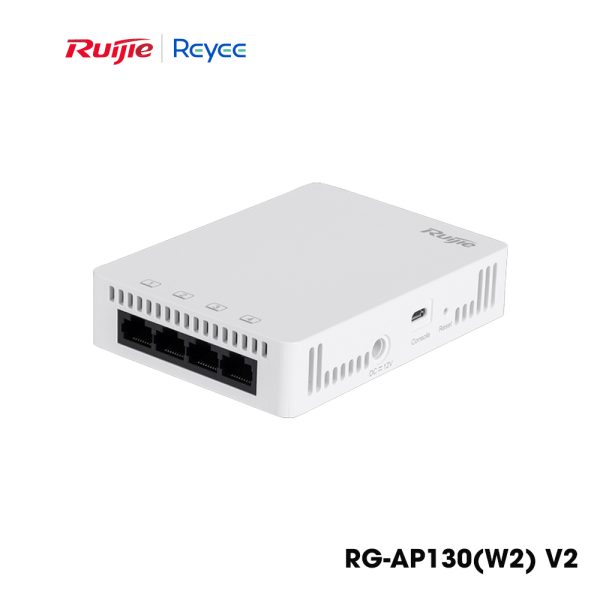

Access Point ốp tường RG-AP130(W2) V2

Thiết bị Access Point ốp tường RG-AP130(W2) V2
– Tốc độ lên đến 1.167Gbps.
– Hỗ trợ 2 băng tần 2.4GHz và 5GHz chuẩn 802.11a/b/g/n/ac.
– Dòng sản phẩm phù hợp sử dụng cho khách sạn, văn phòng, căn hộ.
– Hỗ trợ 4 cổng 10/100/1000M Ethernet ports.
– Hỗ trợ 1 cổng 10/100/1000M uplink port.
– Hỗ trợ nguồn 802.3af PoE <8W.
– Hỗ trợ dịch vụ Ruijie Cloud miễn phí giúp cấu hình tư xa cực kỳ đơn giản.
– Hỗ trợ tối đa 32 người dùng | 16 BSSID
– Hỗ trợ tính năng cân bằng tải thông minh dựa vào số lượng người dùng và lưu lượng.
– Hỗ trợ tính năng tạo Voucher cho người dùng (phù hợp cho giải pháp cho thuê wifi khu nhà trọ/ký túc xá)
– Hỗ trợ tính năng PPSK giúp phân quyền đăng ký wifi cho 1 số thiết bị xác định trước (yêu cầu bộ controller).
– Hỗ trợ các tính năng WIFI marketing (Tự tạo trang chào, logo, link dẫn tới trang đích, Facebook…)

Mã: RG-AP130(W2) V2 Danh mục: ,

Tính năng

Enterprise Experience for SME

● Lifetime Free Ruijie Cloud

A free public cloud services from Ruijie to provide a centralized device management platform for SME customer.  It provides single pane of glass to deploy, manage & optimize your wired and wireless equipment without need of specialized IT staff.

Ruijie Cloud also offers an integrated mobile APP to help you deploy and monitor your network on-the-go.

All Ruijie SME AP enjoy Lifetime FREE Enterprise Cloud Management Service

For more details, please visit Ruijie Cloud Official Website at https://www.ruijienetworks.com/products/smb/cloud-service/cloud-service/ruijie-cloud-solution

● 3-Year Warranty Support

Ruijie’s SME products are all bundled with an exclusive 3-year product warranty free of charge. Ruijie customers can also enjoy the complimentary professional online support which is staffed with Ruijie certified experts to respond to your problems efficiently.

High-performance 802.11ac Wave 2 Wall AP

The Ruijie RG-AP130(W2)V2 Wall AP adopts 802.11ac Wave 2 dual-radio, dual-band design and supports concurrent operation of 802.11a/n/ac and 802.11b/g/n. AP130(W2)V2 provides 4 10/100/1000Mbps RJ-45 ports and 1 1000Mbps uplink port at rear. The dual-band 2.4G and 5G coverage can achieve a concurrent coverage supporting 2 spatial streams, providing an unparalleled network experience.

Benefit of 802.11ac Wave 2? The Wave 2 technology significantly increasing multi‑user throughput and essential for high-density wireless applications, by taking advantage of MU‑MIMO technology which allows multiple clients processed at the same time

802.11ac Wave 2 MU-MIMO Technology

Easy and Fast Deployment

The Ruijie SME Series Wall AP adopts a wall-mounted design with 2-step easy deployment:

Step 1: Remove the original faceplate from the wall.

Step 2: Directly install the plug-and-play Wall AP and connect with original UTP cable (PoE).

This breaks through traditional wireless network construction methods by reusing existing network cables and minimizes the impact of network construction on hotel or similar settings. As no additional cabling is required, the Wall AP delivers maximum business agility and investment protection. Ruijie also offers a wide range of optional accessories to meet your unique deployment needs.

Traditional challenges on laying additional cabling for AP installation

Universal Compatible

The RG-AP130(W2)V2 Wall AP provide an option of Universal Mount Kit for non-UK standard countries, such as S. Korea, Japan, Philippines. Europe, Russia, United States, etc.

Universal Mount Kit Installation on EU/Russia Junction Box (RG-AP130(W2)V2)

High Definition IPTV Application

Nowadays, IPTV service especially VoD (Video on Demand) are widely adopted by hotel chain group to deliver premium entertainment experience for their loyal guest. To guarantee for high quality IPTV service, sufficient IP bandwidth and low latency IP Network is the essential.

Ruijie RG-AP130(W2)V2 is feature-customized for hotel IPTV application, upto 4 High Definition TV can be connected via the Gigabit (1000M) LAN ports, and fully support video streaming and multicast protocol such as QoS, IGMP Snooping, 802.1q, etc.

With Ruijie patent CPP (CPU Protection Policy) technology, which further protect CPUs from being abused and attacked, allowing the most stable IPTV service connectivity offering.

Screen Mirroring Control

Trend of online content streaming today, 87%  of guests surveyed indicated that they would prefer the ability to cast their apps to a larger guestroom television screen.

However, the biggest challenges are lack of control measures to minimize personal smart device screen casting to other TV in another guest room or non-authorized device. And, network security breaches also increase due to same logical network segment (Layer 2) between the TV and the Guest’s Smart Phone/Tablet terminal.

Mobile Casting/Mirroring Challenges Today

Ruijie introduced an Easy but Secure countermeasure on Personal Screen Casting/Mirroring, namely Screen Mirroring Isolation . With the Ruijie Screen Mirroring Isolation, guest only limited to broadcast his/her screen on the authorized Smart TV.

As illustrated by below diagram, a QR-Code (generated by Ruijie WLAN Controller) will be displayed on the TV Screen (API integration needed with Hotel’s TV Manufacturer), once the guest scan the QR-Code, the TV will be bound with the individual smart device, and the Smart TV will be available as the options for the screen casting. In the meanwhile, other TV will never be available for mirroring without QR-Code binding authorization procedure.

Screen Mirroring to TV procedures

Guarantee for Guest Comfort

Comfort is the MUST for guest relaxation. Traditional Wall AP with LED Status Indicator for engineer installation & troubleshooting use, the but light and LED status flashing will make disturbance on guest sleeping.

All Ruijie SME Wall AP designed with coverable plate, make guarantee for the guest comfortability.

Device Status Lighting is covered by plate

Full Signal Coverage

Traditional APs are installed in corridors (Ceiling) and the indoor network signals are weak or even completely degenerated after wall penetration. The Ruijie AP130 or Ap110 series Wall AP, on the other hand, can be installed inside the room and hence ensures full coverage anywhere for the best user experience of voice, video or Internet browsing.

Wall AP vs Corridor AP Design

Advanced Wi-Fi Technology Ready

With Ruijie WLAN Controller (Hardware or Cloud based) solution complement, all Ruijie SME APs can deliver Enterprise WLAN stability and performance in extreme environment, especially high-density wireless environment with heavy interference in campus, hotel, office, and shopping mall scenarios.

There are 4 essential wireless technology available, namely Seamless Roaming (L2/L3), Band Steering (5G Priority), Smart Load Balancing, and Automated Radio Resource Management (RRM or Radio Optimization).

Flexible Hybrid Management

Ruijie AP offers the flexibility for SME to choose the mode of management. There are 3 different management modes for selection. For the Ruijie Cloud option, no extra cost or firmware upgrade is required, which saves company expenses and time.

● Selection between Ruijie Cloud and Hardware Controller

In some cases, a local on-premise wireless controller is required due to some business requirement. Ruijie SME AP allows the flexibility according to customer preference, the AP can be either managed by Ruijie Cloud or on-premise wireless controller.

Ruijie Cloud and Hardware AC Comparison

User Access Control

Working with Ruijie WLAN Controller, Ruijie SME Wall AP supports a broad library of user authentication methods such as Guest Captive Portal, 802.1x, MAC address, Voucher Access Code, PPSK (for Staff) and various local authentication for customers’ choice. It also supports Ruijie’s end-to-end BYOD (Bring Your Own Device) Solution, complies with a standard access control system, and strictly defines access control policies in terms of user access, authorization, host compliance check, network behavior monitoring, and network threat defense. All these control measures ensure that users are authenticated before accessing a network and securely enjoy network services.

Fast Provisioning

Ruijie Cloud provides a mobile APP which allows devices onboarding and provisioning completed by just 4 simple steps. Typically, it takes less than 5 minutes from unboxing Ruijie wireless access point to Wi-Fi up and running, which significantly simplifies Wi-Fi deployment.

4-step Fast Provisioning

Mobile Operation On-The-Go

Ruijie Cloud offers an innovative breakthrough which allows device operation and management from your smartphones at your fingertips. Now you can monitor your Wi-Fi user experience, traffic and client analysis anytime and anywhere. An alarm notification will be pushed to your smartphone if there’s device issue found in your network. It helps SME business to know and understand the real time situation of Wi-Fi network.

Monitoring Wi-Fi Networking on your fingertips

Thông số kỹ thuật


RG-AP130(W2) V2

Target Deployments

For wireless deployment in hotels, offices, residential buildings

Basic Specifications


Concurrent dual-radio dual-band



Operating Bands

2.4GHz and 5GHz


Built-in omnidirectional antenna (Base gain 3.5dBi)

2×2 MIMO

Max Throughput


Spatial Streams


IP Rating



Service Port


4 10/100/1000M Ethernet ports


1 10/100

/1000M uplink port


Power Supply

PoE (802.3af)

Power Consumption



Maximum clients per AP


BSSID capacity


SSID hiding


Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID


Remote Intelligent Perception Technology (RIPT)


Intelligent load balancing based on the number of users or traffic


STA control


Bandwidth control

STA/SSID/AP-based speed control

Band Steering (5G Priority)


Dynamic Frequency Selection (DFS)

Future release support



(Fit mode)


PSK authentication


Web portal authentication (by Ruijie Cloud integration)


802.1x authentication


PPSK authentication


(Controller required)

Data encryption

WPA (TKIP), WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

PEAP authentication


Data frame filtering

Whitelist, static/dynamic blacklist

User isolation


Rogue AP detection and countermeasure


Standard & Extended IP & MAC ACL




CPU Protection Policy (CPP)


Wireless Intrusion Detection System (WIDS)


IPv4 address

Static IP address or DHCP

IPv6 address

Static IP address or DHCP

Screen Mirroring Isolation

Support (Fit AP)


IGMP Snooping


Management and Maintenance Trunk Management (IEEE 802.1q)


Network management

SNMP v1/v2C/v3, Telnet, TFTP, FTP and Web management

Fault detection and alarm


Cloud AC management


Statistics and logs


External Characteristics Lock

Anti-theft screws and ordinary screws

LED Indicators

1 LED status indicator

Relevant Standard Wi-Fi Alliance Certification


Safety Standard

GB4943, EN/IEC 60950-1

EMC Standard

GB9254, EN301 489

Health Standard

EN 62311

Radio Standard

EN300 328, EN301 893

Vibration Standard

IEC60068-2-31, ETSI EN300 019,



Dimensions (H x W x D) (mm)

116 × 86 × 37.5



Work Environment Temperature

Operating Temperature: -10°C to 45°C

Storage Temperature: -40°C to 70°C


Operating Humidity: 5% to 95% (non-condensing)

Storage Humidity: 5% to 95% (non-condensing)

Installation Mode

Standard 86-type faceplate installation

Universal Mount Kit included for US/EU

Junction box installation


Ứng dụng

Boutique Hotel Solution

Ruijie offers the “5-Star Guest Wi-Fi Experience” solution offering for Boutique Hotel. Ruijie understand Boutique Hotel customer have limited IT and Budget support, but they like many 5-Star grade hotel, guest experience is utmost important for business survival and accredit for good scoring at online hotel booking agency.


● Dropping of Internet rating for bad guest Wi-Fi

● No dedicated IT teams

● No money for enterprise-grade big brand

Our Solutions:

Ruijie providing a comprehensive solution offering from scenario-based wireless access points, switches, and internet gateway. Taking advantages of Ruijie Cloud management, no separate controller required on customer-premises. Every guest room is recommended for one unit of AP130(W2)V2 for best coverage, and AP730-L Tri-band Wave2 Access Point can be selected for high density wireless environment, of which one single AP730-L can support upto 768 clients. Together with Ruijie EG Security Gateway, the Boutique Hotel can enjoy stable and fast internet connectivity with flexible guest access control policy.

Boutique Hotel Solution Topology
