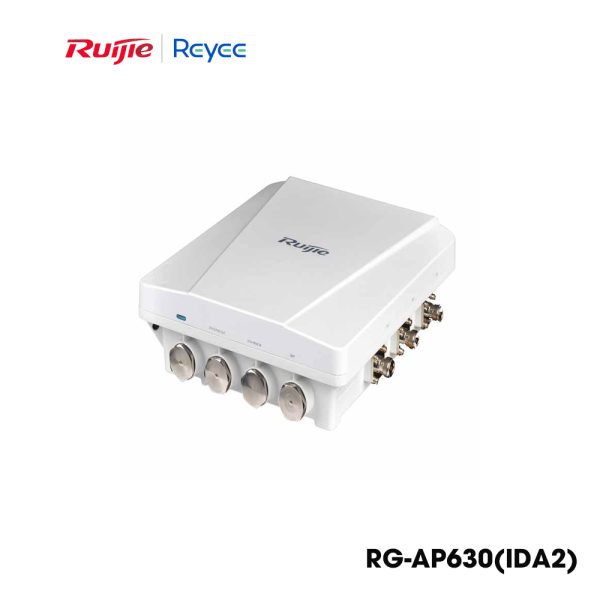

Access Point RG-AP630(IDA2)

Thiết bị Access Point RG-AP630(IDA2)
– Tốc độ lên đến 2.533Gbps với model tích hợp antenna, 1.9Gbps với model dùng antenna ngoài.
– Hỗ trợ 2 băng tần 2.4GHz 802.11a/b/g/n/ac Wave2 và 5GHz chuẩn 802.11b/g/n và 802.11a/n/ac.
– Độ lợi antenna: 10dBi
– Hỗ trợ 1 cổng 1 10/100/1000 Base-T Ethernet (ETH1/PoE IN), 1 cổng 1 10/100/1000 Base-T Ethernet (ETH2)
– Hỗ trợ 1 cổng quang SFP 1000M (Cổng Combo).
– Hỗ trợ nguồn PoE+ (802.3at) <25W.
– Hỗ trợ dịch vụ Ruijie Cloud miễn phí giúp cấu hình tư xa cực kỳ đơn giản.
– Hỗ trợ tối đa 512 người dùng | 32 BSSID/ 1 AP và 16 BSSID/ 1 radio.
– Góc phát 30 độ theo phương dọc, 60 độ theo phương ngang.
– Hỗ trợ tính năng cân bằng tải thông minh dựa vào số lượng người dùng và lưu lượng.
– Chuẩn IP67, gắn tường hoặc gắn cột.

Mã: RG-AP630(IDA2) Danh mục: ,

Tính năng

High Performance & Reliability

●802.11ac Superior Wireless Performance

The RG-AP630(IDA2) supports 802.11n@2.4GHz and 802.11ac@5GHz, access rate up to 2.533Gbps. The outstanding wireless performance greatly optimizes wireless user experience, increases the number of concurrent users and enhances signal coverage.

●Built-in Smart Antenna of AP630(IDA2)

Equipped with built-in antenna, the RG-AP630(IDA2) can achieve a real-time antenna beam switching based on the location of access devices, ensuring optimal wireless experience. The AP also support switching of internal and external antennas to flexibly adapt to any deployment scenarios.

Built-in Directional and Omnidirectional Antennas of AP630(IDA2)

●Industry’s Most Flexible Gigabit Uplink

The RG-AP630(IDA2) offers a 10/100/1000Base-T Ethernet uplink port that rids the LAN port of being the wireless access bottleneck, and a 1000M SFP combo port that adapts to wired networking structure under different user scenarios. The SFP Base-X port takes up the data transmission workload for optimal network deployment.

●Easy-to-use Mount-Kit

An adjustable mount-kit is available by default for painless deployment optimization. The APs can be easily adjusted -60° to 60° horizontally and -60° to 90° vertically to adapt to various scenarios.

Adjustable Mount-kit of AP630

●All-in-one Package for Painless Deployment

The RG-AP630(IDA2) Outdoor AP offers you a one-stop installation package. Everything you need is included, from external antennas to lightning arresters and coaxial cables, for effortless outdoor deployment.

All-in-one Installation Package

●Flexible WDS Mode

The APs implement WDS (Wireless Distribution System) to support interconnection of multiple APs or wireless bridging under 5 hops. Wireless bridging can be achieved even for a long distance. The outdoor APs also support point-to-multipoint bridging (CPE application scenarios) for more flexible networking. The features get over the outdoor deployment problems to support large-scale and remote high-speed wireless coverage.

● Intelligent Device Recognition

The APs support intelligent recognition of end devices running mainstream operating systems such as iOS and Android.

●Industry-leading Local Forwarding Technology

Employing an industry-leading local forwarding technology, the APs eliminate the traffic bottleneck of wireless access controllers. Deploying with the Ruijie RG-WS Wireless Controller Series, users can flexibly pre-configure the data-forwarding mode of the outdoor APs. The APs also control if the data will be forwarded via the wireless controller. The local forwarding technology can forward large-scale, delay-sensitive, and real-time transmission data to greatly alleviate the traffic pressure on the wireless LAN controllers and fulfill the high traffic transmission requirements of the 802.11ac network.

●Seamless Roaming Experience

The APs team up with the RG-WS Wireless Controllers in perfect harmony, allowing wireless users to roam seamlessly on Layer 2 and Layer 3 networks without data interruption.

●Abundant QoS Policies

The AP supports a wide range of QoS policies. For example, it provides WLAN/AP/STA-based bandwidth limitation modes that prioritize key services over others.

●Outstanding Environmental Adaptability

The outdoor APs offer an IP67-rated enclosure that fulfills waterproof, dustproof, moisture-proof and flame retardant requirements to withstand harsh environments such as wind erosion, rain and high humidity. The features greatly lengthen the equipment life span and effectively reduce the maintenance cost.

●Wide Operating Temperature Range

All the AP components and enclosures can withstand a wide temperature range from -40°C to 65°C without any influence on the stability and life span. The design ensures the metal components cool down efficiently at high temperatures. The built-in heater module guarantees stable operation under freezing conditions.

Comprehensive Security Policies

●User Data Encryption

The outdoor APs offer protected Wi-Fi access with the support of cutting-edge encryption technologies such as WEP, TKIP and AES, guaranteeing the data transmission security of the wireless network..

●Virtual AP Technology

With the virtual AP technology, the AP can offer up to 16 ESSIDs (per radio) and 16 802.1Q VLANs. The network administrator can separately encrypt and isolate subnets or VLANs that have the same SSID. A separate authentication mode and encryption mechanism for each SSID can also be configured flexibly.

●Standard CAPWAP Encryption

CAPWAP (Control and Provisioning of Wireless Access Points) enables communication between RG-WS Wireless Controllers and the outdoor APs. The standard ensures secure data transmission.

●RF Security

In collaboration with Ruijie’s RG-SNC Smart Network Commander and RG-WS Wireless Controllers, the APs enable the RF probe scanning mechanism to detect unauthorized access points or other RF interference sources. Once detected, the APs will alert network administrator to monitor potential threats and usage status in the wireless environment.

●User Access Control

The APs support a wide range of authentication methods such as Web, 802.1x, MAC address and local authentication. The APs also support Ruijie’s advanced Security Management Platform (SMP) BYOD Solution which complies with a standard access control system. The system has a set of control policies in terms of user access, authorization, host compliance check, network behavior monitoring, network attack defense, etc. All these control features ensure that users are authenticated before accessing the network services securely.

●Wireless Protection

Together with Ruijie’s RG-SNC Smart Network Commander and RG-WS Wireless Controllers, the APs provide a powerful range of wireless security features such as Wireless Intrusion Detection System (WIDS), RF Interference Location, Rogue AP Countermeasures, Anti-ARP Spoofing and DHCP protection for a truly secure and reliable wireless network.

●Wireless IPv6 Access

Comprehensive IPv6 features are available to enable IPv6 forwarding on a wireless network. Both IPv4 and IPv6 users can connect to the ACs over tunnels, enabling IPv6 applications to be borne on the wireless network.

Flexible Device Management Mode

●Flexible Switching Between The FAT And FIT Modes

The APs support flexible switching over the FAT and FIT modes according to the networking requirements of different industries. When there are few APs, users can adopt the FAT mode for easy independent network establishment. For large-scale networks, the APs can operate in FIT mode which allows centralized management of all the APs and other aspects such as security, traffic management, QoS and IP management when deployed with the RG-WS Wireless Controllers. Smooth transition from one to another, the APs fully protect user investment.

●Simple Deployment With Zero Configuration

Under the FIT mode, no AP configuration is required before deployment. Also, no manual configuration is necessary for on-site installation, maintenance or replacement. Auto-configuration can be completed via the AC. This user-friendly feature can greatly reduce workload and investment costs.

●Comprehensive Remote Management

The RG-WS Wireless Controllers or Cloud AC can remotely and centrally manage all AP operations such as channel, power ranking, SSID configuration, security configuration, VLAN division and so on. The feature enhances security and simplifies the wireless network management.

●PoE Port For Easy Deployment & Maintenance

The RG-AP630(IDA2) support the 802.3at PoE standard. By connecting to a HPoE switch through the AP Ethernet port, the outdoor APs can gain power and support data transmission via cables. The network administrator can remotely perform configuration. It also solves the problem of unstable power source, simplifies the installation process and maximizes the cost savings.

Thông số kỹ thuật

Model RG-AP630(IDA2)
Target Deployments For big campus, wireless city, harbour, storage room, mine

Basic Specifications


Concurrent dual-radio dual-band


802.11a/b/g/n/ac Wave2

Operating Bands

802.11b/g/n: 2.4GHz to 2.483GHz

802.11a/n/ac: 5.150GHz to 5.350GHz, 5.47GHz to 5.725GHz, 5.725GHz to 5.850GHz

(vary depending on countries)


Built-in Directional Smart Antenna (support external/internal antenna switching)

Antenna Loba Orientation

Internal Directional:

Horizontal 60 degrees,Vertical 30 degrees

Antenna Gain


Max Throughput

Build-in antenna model: 800Mbps@2.4G


2.533Gbps per AP;

External antenna model:



1.9Gbps per AP

Spatial Streams



OFDM: BPSK@6/9Mbps








Receiver Sensitivity

11b: -99dBm(1Mbps), -93dBm(5.5Mbps), -90dBm(11Mbps)

11a/g:-93dBm(6Mbps), -85dBm(24Mbps), -82dBm(36Mbps), – 77dBm(54Mbps)

11n:-92dBm@MCS0, -73dBm@MCS7, -92dBm@MCS8, -73dBm@MCS15

11ac HT20: -90dBm (MCS0) , -63dBm (MCS9)

11ac HT40: -85dBm(MCS0) , -60dBm (MCS9)

11ac HT80: -82dBm(MCS0) , -58dBm (MCS9)

Maximum Transmit Power


Note: The transmit power is configurable to up to 15dBm in 1dBm steps. The actual transmit power depends on local laws and regulations.

Adjustable Power


IP Rating IP67


Service Port

One 10/100/1000Base-T Port(ETH1/PoE IN);One 10/100/1000Base-T Port(ETH2);

One 1000M SFP Port(Combo Port)

Management Port

1 Console Port(RJ45)


Power Supply

PoE+ (802.3at)

Power Consumption


WLAN Maximum clients per AP

Up to 512

SSID capacity

Up to 16 per radio

Up to 32 per AP

SSID hiding


Configuring the authentication mode. Encryption mechanism and VLAN attributes for each SSID


Remote Intelligent Perception Technology (RIPT)




Intelligent  load balancing based on the number of users or traffic


STA control


Bandwidth control

STA/SSID/AP-based speed control

Preference for 5GHz (band select)


Wireless position tracking


Dynamic Frequency Selection(DFS)

Future Release Support


PSK, Web, and 802.1x authentication


Data encryption

WPA (TKIP) , WPA2 (AES), WPA-PSK, and WEP (64 or 128 bits)

QR code authentication


SMS authentication


PEAP authentication


Data frame filtering

Whitelist, static/dynamic blacklist

User isolation


Rogue AP detection and countermeasure


Dynamic ACL assignment






CPU Protection Policy (CPP)


Network Foundation Protection Policy (NFPP)


Wireless Intrusion Detection System(WIDS)


Wireless Intrusion Prevention System (WIPS)


Routing IPv4 address

Static IP address or DHCP reservation

IPv6 CAPWAP tunnel




IPv6 address

Manual or automatic configuration



Management and Maintenance Network management

SNMP v1/v2C/v3, Telnet, SSH, TFTP, and web management

Visualized wireless heat map analysis


(need to integrate with SNC)

Real-time spectrum analysis


(need to integrate with SNC)

Fault detection and alarm


Cloud AC management


Statistics and logs


FAT/FIT switching

The AP working in FIT mode can switch to the FAT mode through the RG-WS wireless AC.

The AP working in FAT mode can switch to the FIT mode through a local console port or Telnet.

External Characteristics Lock


LED Indicators

Power status and WDS signal strength

Relevant Standard Wi-Fi Alliance Certification


Safety Standard

GB4943, , EN/IEC 60950-1, EN/IEC 60950-22

EMC Standard

GB9254-2008, EN301 489, EN55022

Health Standard

EN 50385,

Radio Standard

FCC Part15,EN300328, EN301893

Vibration Standard

GB/T 2423


Dimensions (W x D x H) (mm)

276 × 246 × 90



Work Environment Temperature

Operating Temperature: -40°C to 65°C (heater module will be enabled at -15°C)

Storage Temperature: -40°C to 85°C


Operating Humidity: 0% to 100% (non-condensing)

Storage Humidity: 0% to 100% (non-condensing)

Installation Mode

Wall/pole-mount installation

Outdoor Antennas






Type of External Antenna




Electrical Specifications

Frequency range

2.4 to 2.483 GHz

5.125 to 6.100 GHz

2.4 to 2.5 GHz; 5.125 to 6.100 GHz


3 × 15 dBi

2 × 19 dBi (vertical) + 16 dBi (dual inclined planes)

8 dBi

Horizontal beamwidth




Vertical beamwidth




Front-to-back ratio

≤ -25 dB

≤ -25 dB

≤ -25 dB


≤ 1.5

≤ 1.5

≤ 1.5


2*VP(vertical polarization)+1*HP(horizontal polarization)

±45° and vertical polarization

VP(vertical polarization)

Input impedance

50 ohms

50 ohms

50 ohms

Mechanical Specifications

Mounting mode

Pole mounting
(pole diameter 30 to 50 mm)

Pole mounting
(pole diameter 50 to 120 mm)

Pole mounting
(pole diameter 40 to 70 mm)

Temperature range

-40°C to +60°C

-40°C to +60°C

-40°C to +60°C

Unit weight

2.3 kg

1.3 kg

1.2 kg


400 × 240 × 35 mm (L × W × H)

380 × 380 × 33 mm (L × W × H)

Φ145 × 330 mm


3 × N-K

3 × N-K

6 × N-K
