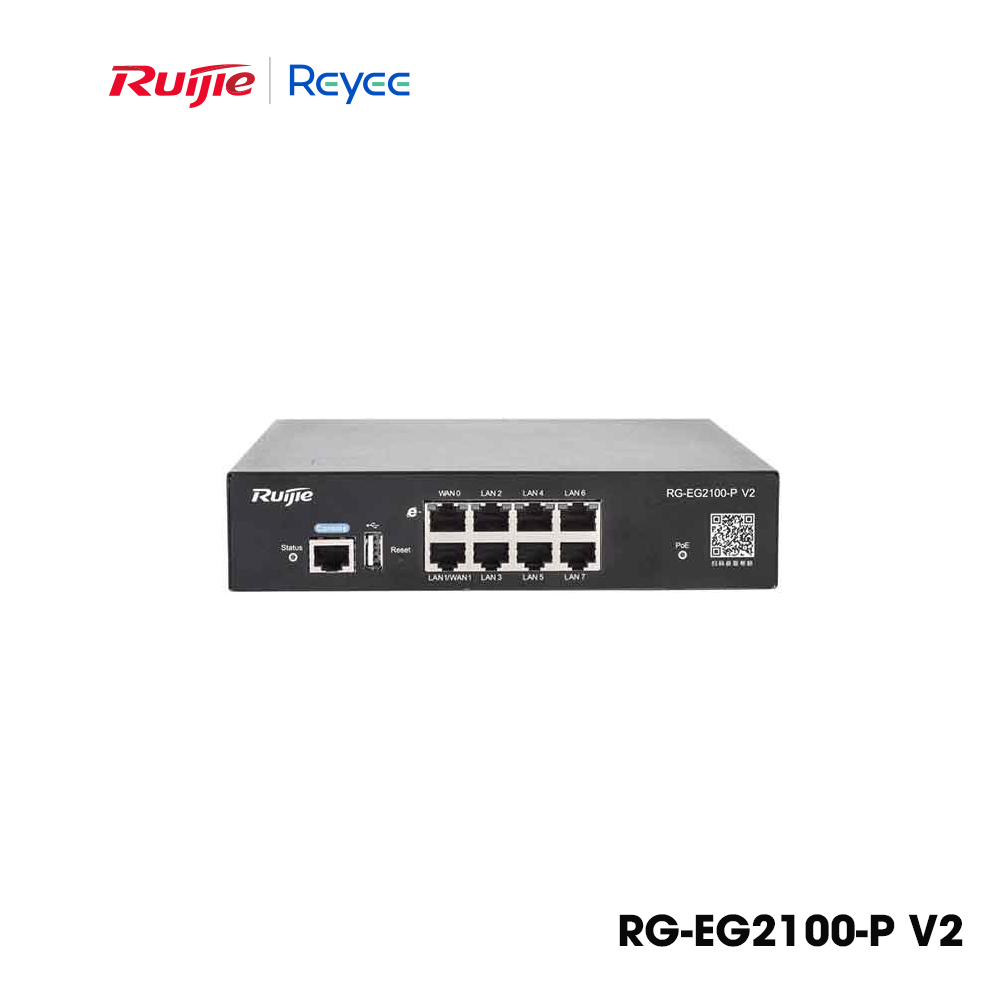

Thông số kỹ thuật gateway tích hợp cổng PoE RUIJIE RG-EG2100-P V2
– 8 cổng 1000BASE-T ports (7x POE/POE+), tổng công suất 135W.
– Hỗ trợ lên đến 2 cổng WAN.
– Memory: 512M | Flash: 4GB EMMC | Cache: 750MB.
– Hỗ trợ 300 user.
– Dễ dàng quản lý và cấu hình qua Ruijie cloud.
– Hỗ trợ 16 kênh VPN (IPsec).
– Hỗ trợ quảng cáo.
– Cân bằng tải giữa các đường truyền internet.
– Hỗ trợ cập nhật thư viện signature của các ứng dụng mobile/windows (facebook, youtube, torrent..) để quản lý/ngăn chặn.
– Nguồn 100-240V~,50-60Hz,3A.
– Kích thước: 200 × 200 x 43.6 mm.
– Nhiệt độ hoạt động: 0°C~45°C.
– Xuất xứ: Trung Quốc.
Tính năng
Smart Flow Control & AAA Integration
Smart P2P speed limit, accurate identification of P2P software, and automatic transmission of uplink source quench message to control the downlink traffic and prevent downlink bandwidth exhaustion
Support over 120 popular application in DPI engine and enjoys FREE for life signature update
Role-based flow control based on usernames and user groups to facilitate the allocation of bandwidths according to different departments
Support AAA (Authentication, Authorization and Accounting) with web authentication, integration with AAA Software and simple traffic accounting feature
Online Behavior Management
Ruijie EG Next-generation Unified Security Gateway provides detailed online behavior management of the intranet users, blocking a variety of non-work-related websites to create a good working atmosphere and improve work efficiency.
VPN Visualization
Ruijie SME Security Gateway has significantly simplified the VPN configuration, which could be completed just by a few clicks, eliminating the need for professional maintenance. The gateway enables users to view and control the traffic in the VPN tunnel, establishing a visualized VPN to guarantee the security of key services using VPN.
Traffic Analysis
Equipped with powerful DPI technology, the Ruijie SME Security Gateway collects traffic usage statistics based on users, applications and links for report generation, providing reliable historical data for bandwidth expansion as well as user and application-based bandwidth control policies.
Centralized Cloud Management
Couple with Ruijie Cloud services, the Ruijie EG Security Gateway is now able to be monitored & managed from the centralized cloud services. Ruijie Cloud is the free cloud-based management platform for all the Security Gateway series. No hardware or servers required to be installed on customer premise. Device monitoring, configuration changes & firmware management can be performed easily in anytime, anywhere & anyway.
Diagram 1 EG Security Gateway Device Info and Top N Traffic Analysis on Ruijie Cloud management platform
Intuitive Mobile App
Apart from the accessing cloud management dashboard from workstation, Ruijie offer an alternative to manage Security Gateway from your fingertips, a tailor-made Mobile App you can download from Google Play and Apple Appstore. You can now access to Security Gateway even you’re away from your PC.
Mobile App Provisioning for Dummy
For ease of provisioning, Ruijie provide an innovative Mobile App Dummy Provisioning for SME customers. In less than 3-min, user can complete the Gateway initial setup with Internet connectivity, without any PC setup or cable installation.
App Caching for Download Acceleration
Ruijie EG Gateway provide exclusive Caching technology for any media files resources and Mobile App (Google Android APK and IOS Store), the files will download from EG Cache directly without go through the Internet. The feature is exceptionally help for situation with high volume for same identical file downloading, such as Games, Mobile App, System Patches, etc. but the internet line speed is not fast sufficient or expensive.
One of most popular application is for shopping malls, retails chain, F&B, Airport, Metro Company with own Mobile App for O2O business, membership promotion, and value-added service. Guest or Vistors very often will download the same Mobile App during the peak hours, and long downloading is defintely expected because of Internet or Server-side bottleneck issues.
Diagram 2 EG Security Gateway Hot Spot Resource Table: Review for the Hit Ratio for cache resources
Built-in Internet Audit Log Storage
At the heart of most devices that provide protection for IT networks is an ability to log events and take actions based on those events. Ruijie SME Security Gateway (EG3250 model only) supports detail logging both on what has happened to the device and what is happening. A local attached 1TB harddisk provides sufficient storage to keep all the nessecary audit logging trail. It increase the higher logging retential period before it is exported to external logging server
Built-in Power-Over-Ethernet (POE)
Designed for retail, small organizations and distributed enterprises with remote and branch offices, the RG-EG2100-P v2 integrate support for PoE devices. It come with 7 POE Out ports to provide power to and endpoint like, video cameras, security access control (card scanners), point-of-sales devices, IP phones, wireless access point and many more. It eliminates the complexity of providing extra power cabling especially the small organization or retail wireless network deployment. Cost and time saving!
Thông số kỹ thuật
Model
RG-EG2100-P v2
RG-EG3250
Hardware Specification
CPU
Multi-core MIPS
Fixed Ports
8 1000BASE-T ports (7x POE/POE+)
8 1000BASE-T ports
1 SFP port
1 SFP+ port (non-combo)
WAN Ports
Upto 2
Upto 6
Flash
4GB EMMC
8M SPIFLASH
Hard Disk
N/A
Standard 1TB
Memory
512M
2G
Performance & Feature
Performance
1000Mbps (1518 bytes)
6000Mbps (1518 bytes)
450Mbps (512bytes)
3725Mbps (512bytes)
70Mbps (64 bytes)
800Mbps (64 bytes)
Concurrent Session
100,000
600,000
Recommended Concurrent User
300
2000
App Caching
Support
Support
Cache Capacity
750MB
100GB
Cache Resources
Android APK & Apple IOS
Android APK & Apple IOS; Windows System Patches
Network Protocol
Support TCP/IP protocols, including IP, ICMP, IGMP, TCP, UDP, etc.
Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF
Support DHCP Relay and DHCP Server
Support PPPoE Client
Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc.
Support ARP, trusted ARP, proxy ARP, etc.
Support Ping and Traceroute fault detection
Application Visibility
Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification:
P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc.
Multimedia: YouTube, Facebook Video, WebEx Conference & etc.
Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc.
VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc.
Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc.
Software Update: Window, McAfee, Kaspersky, ESET & etc.
Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc.
Support custom URLs
Support remote HTTP automatic URL library upgrade
Local log storage (NAT log, traffic log, URL log, etc.)
Support storage on external log server
WAN Load Balancing
Support (upto 2 WAN Port)
Support (upto 6 WAN Port)
IPsec VPN Tunnel
16
1000
Network Security
Anti-ARP Spoofing
Defense against malicious attacks from internal and external networks
Support secure address binding
Block WAN Ping
Prevent Port Scan Attack
Prevent Fragmentation Attack
Prevent ICMP Flood Attack
Prevent Teardrop Attack
Prevent Ping of Death Attack
Prevent Land Attack
Prevent Smurf / Fraggle attack
Prevent SYN Flood Attack
Ruijie Cloud Integration Feature
Support device health monitoring status
Support centralized configuration change management & backup
Support Top 10 Application/User traffic visualization
Support device firmware management
Support event-based alarm notification
Other Features
Integrate with AAA software to support multiple authentication modes
Other Features
Service and Support
Support push advertising page
Support multi-link load balancing
Support remote HTTP online upgrade for signature library, software version, etc.
Lifetime Free signature library upgrade
Rack Height
1U
1U
Weight
2KG
4kg
Power Supply
100-240V~,50-60Hz,3A
100-240V~,50-60Hz,0.65A
PoE Budget
135W
NA
Power Consumption
<150W
<25W
Dimensions (W x D x H) (mm)
200×200×43.6
440×200×43.6
Operating Temperature
0°C to 45°C
0°C to 40°C
Operating Humidity
10% to 90%RH
10% to 90%RH
Ứng dụng
Ruijie EasyGate Next-gen Unified Security Gateway is a multi-functional security gateway product integrated with NAT, security, acceleration, flow control and online behavior management features, which is designed to optimize Internet Gateway Solutions, providing customers with simplified Internet gateway network, optimized Internet experience, flexible online behavior management and other features.
Security Gateway can be applied as Internet gateway for scenarios such as hotels, shopping mall, higher education, primary and secondary schools, enterprise networks, retails, small business, etc.
Diagram 1: Typical Application Scenario for SME Office /Hotel and Retail Chain Stores
Diagram 2: Typical Application Scenario for Eco/Budget Hotel or Small Office
Application Features:
●Support integration with AAA authentication and Ruijie Cloud unified management
●Support CMCC + RADIUS authentication and billing
●Support user online behavior management such as blacklist URL blocking, user activity tracking and URL monitoring, etc.
●Feature-rich application visibility to track user traffic and apply necessary remediation
●Support authentication-free feature in case failure occurs at the authentication servers or links and authentication service is unavailable.
